Domain and Networking Setup
Domains and DNS Configuration
Below is a quick reference table for all our domains, which are registered and managed by AWS Route 53.
Domain List
| Applications | Domain |
|---|---|
| BrillianIDEAS, BrillianDOCS, Wordpress Page, AWS SES | brillianideas.com |
| BrillianQUIZ | brillianquiz.com |
| BrillianCRM | brilliancrm.com |
| BrillianICM | brillianicm.com |
| IMBIT-N3XT | imbit-n3xt.com |
| Unused | digital-learning-imbit.com |
DNS Settings by Domain
- BrillianIDEAS
- BrillianQUIZ
- BrillianCRM
- BrillianICM
- IMBIT-N3XT
| Name | Type | Alias | Value | Notes |
|---|---|---|---|---|
| brillianideas.com | A | Yes | d1py45h4yu2kpc.cloudfront.net. | Maps domain to the IP of the CloudFront distribution |
| docs.brillianideas.com | A | Yes | d24a7q0jdds7kb.cloudfront.net. | Maps subdomain to the IP of the CloudFront distribution for BrillianDOCS |
| imbit.brillianideas.com | A | No | 3.66.131.100 | Maps subdomain to the IP address of the Wordpress page (actually managed through the Lightsail DNS!) |
| www.brillianideas.com | CNAME | No | brillianideas.com | Redirects www requests to root domain |
| www.docs.brillianideas.com | CNAME | No | www.brillianideas.com | Redirects www requests to root domain |
| _424a8a3a059b306187fb0c3004383621.brillianideas.com | CNAME | No | _cb31acd4fa6703cf7c048816d909672d.tljzshvwok.acm-validations.aws. | Domain verification record for AWS Certificate Manager |
| 66njepsccuxjo7tcmr34nkxzlnnvgbsv._domainkey.brillianideas.com | CNAME | No | 66njepsccuxjo7tcmr34nkxzlnnvgbsv.dkim.amazonses.com | DKIM record for AmazonSES |
| wouurah7of3osexererygt7s4adxzbvv._domainkey.brillianideas.com | CNAME | No | wouurah7of3osexererygt7s4adxzbvv.dkim.amazonses.com | DKIM record for AmazonSES |
| zom55upkpyudmnrgsx3grqnrhk3fpvoe._domainkey.brillianideas.com | CNAME | No | zom55upkpyudmnrgsx3grqnrhk3fpvoe.dkim.amazonses.com | DKIM record for AmazonSES |
| _4591ec5b3f6a433f16411f21c8c7c781.docs.brillianideas.com | CNAME | No | _318650309665af01929b62bffb5f6c97.sdgjtdhdhz.acm-validations.aws. | Domain verification record for AWS Certificate |
| _5d48c25767e3a69d7958afe924b18bd2.www.docs.brillianideas.com | CNAME | No | _53ea2ae8d268386502aec7d5aea89d64.sdgjtdhdhz.acm-validations.aws. | Domain verification record for AWS Certificate |
| _ee875fa9e11c65364b8e30391ef2839a.www.brillianideas.com | CNAME | No | _5b611db584806496551738f175d5c772.tljzshvwok.acm-validations.aws. | Domain verification record for AWS Certificate |
| mail.brillianideas.com | MX | No | 10 feedback-smtp.eu-west-1.amazonses.com | Mail exchange record for AWS SES |
| brillianideas.com | NS | No | ns-1607.awsdns-08.co.uk. | Name server record |
| brillianideas.com | NS | No | ns-1085.awsdns-07.org. | Name server record |
| brillianideas.com | NS | No | ns-359.awsdns-44.com. | Name server record |
| brillianideas.com | NS | No | ns-718.awsdns-25.net. | Name server record |
| brillianideas.com | SOA | No | ns-1607.awsdns-08.co.uk. awsdns-hostmaster.amazon.com. 1 7200 900 1209600 86400 | Start of authority record |
| _amazonses.brillianideas.com | TXT | No | "Xjwp+BoUJhZqd/wNcqZ9azCXu/zqeqbS8bH27zMy8aE=" | TXT record for Amazon SES |
| _github-pages-challenge-imbit-mannheim.docs.brillianideas.com | TXT | No | "cdbb5a3754bb98d49fb2233f3829ab" | GitHub Pages DNS challenge |
| mail.brillianideas.com | TXT | No | "v=spf1 include:amazonses.com ~all" | SPF record for Amazon SES |
| _dmarc.mail.brillianideas.com | TXT | No | "v=DMARC1;p=quarantine;pct=100;fo=1" | DMARC quarantine record for email |
| Name | Type | Alias | Value | Notes |
|---|---|---|---|---|
| brillianquiz.com | A | Yes | d44wz0zejg2wr.cloudfront.net. | Maps domain to the IP of the CloudFront distribution |
| www.brillianquiz.com | CNAME | No | brillianquiz.com | Redirects www requests to root domain |
| _77d87ffe10ab0bceff29020980b9cd3c.brillianquiz.com | CNAME | No | _c67e2fcd4fe8162ef24090e351fa4940.qwknvqrlct.acm-validations.aws. | Domain verification record for AWS Certificate Manager |
| _f01b5d82b5df263850b71bf36daec563.www.brillianquiz.com | CNAME | No | _7139c66877b222aefb2c5631b13642ec.sdgjtdhdhz.acm-validations.aws. | Domain verification record for AWS Certificate |
| brillianquiz.com | NS | No | ns-774.awsdns-32.net. | Name server record |
| brillianquiz.com | NS | No | ns-1276.awsdns-31.org. | Name server record |
| ns-310.awsdns-38.com. | Name server record | |||
| ns-1807.awsdns-33.co.uk. | Name server record | |||
| brillianquiz.com | SOA | ns-774.awsdns-32.net. awsdns-hostmaster.amazon.com. 1 7200 900 1209600 86400 | Start of authority record |
| Name | Type | Alias | Value | Notes |
|---|---|---|---|---|
| brilliancrm.com | A | Yes | d3afk01lmot4so.cloudfront.net. | Maps domain to the IP of the CloudFront distribution |
| www.brilliancrm.com | CNAME | No | brilliancrm.com | Redirects www requests to root domain |
| _640b6e499834dd4af82f6c4a80ff66c2.brilliancrm.com | CNAME | No | _df8fcdda00dc379959813dc61da98cef.tljzshvwok.acm-validations.aws. | Domain verification record for AWS Certificate Manager |
| _ed128d356aebb2cab6a55f86915d08ce.www.brilliancrm.com | CNAME | No | _aaf65bf87b9fcb7889cd105ffeebd1b9.tljzshvwok.acm-validations.aws. | Domain verification record for AWS Certificate |
| brilliancrm.com | NS | No | ns-1233.awsdns-26.org. | Name server record |
| ns-492.awsdns-61.com. | Name server record | |||
| ns-1944.awsdns-51.co.uk. | Name server record | |||
| ns-772.awsdns-32.net. | Name server record | |||
| brilliancrm.com | SOA | No | ns-1233.awsdns-26.org. awsdns-hostmaster.amazon.com. 1 7200 900 1209600 86400 | Start of authority record |
| Name | Type | Alias | Value | Notes |
|---|---|---|---|---|
| brillianicm.com | A | Yes | d3u7jacjxiarm3.cloudfront.net. | Maps the domain to the IP address of the cloudfront distribution |
| www.brillianicm.com | CNAME | No | brillianicm.com | Redirects www requests to root domain |
| _368e6af4ff5a4e74b63f30ab88b480ad.brillianicm.com | CNAME | No | _b54fd6b407b89c145d223cdd9f0d7312.tljzshvwok.acm-validations.aws. | Domain verification record for AWS Certificate Manager |
| _824f68c0c2aac3394f10411743621e10.www.brillianicm.com | CNAME | No | _088ebed53ee5188f26a46b410af27374.tljzshvwok.acm-validations.aws. | Domain verification record for AWS Certificate |
| brillianicm.com | NS | No | ns-872.awsdns-45.net. | Name server record |
| ns-354.awsdns-44.com. | ||||
| ns-1473.awsdns-56.org. | ||||
| ns-1636.awsdns-12.co.uk. | ||||
| brillianicm.com | SOA | No | ns-872.awsdns-45.net. awsdns-hostmaster.amazon.com. 1 7200 900 1209600 86400 | Start of authority record |
| Name | Type | Alias | Value | Notes |
|---|---|---|---|---|
| imbit-n3xt.com (SET UP IN LIGHTSAIL!) | A | Yes | dd30hbilqged6x5.cloudfront.net. | Maps the domain to the IP address of the cloudfront distribution |
| dev.pixels.imbit-n3xt.com | A | No | REDACTED | Developement envireonment for IMBIT Pixels on private infrastructure |
| www.imbit-n3xt.com | CNAME | No | imbit-n3xt.com | Redirects www requests to root domain |
| _bcc914229131bb82db3a34834975ae7a.imbit-n3xt.com | CNAME | No | _a5395a1c1af42243d9e03f0d2f9c8667.sdgjtdhdhz.acm-validations.aws. | Domain verification record for AWS Certificate Manager |
| _7647f79bc805dcc886644a75c52c06ee.www.imbit-n3xt.com | CNAME | No | _9477ed1f24af672e783b6639ba206d09.sdgjtdhdhz.acm-validations.aws. | Domain verification record for AWS Certificate |
| pixels.imbit-n3xt.com | CNAME | No | imbit-mannheim.github.io | Pixels Minigame hosted on Github Pages |
| imbit-n3xt.com | NS | No | ns-1847.awsdns-38.co.uk. | Name server record |
| NS | No | ns-1446.awsdns-52.org. | ||
| NS | No | ns-488.awsdns-61.com. | ||
| NS | No | ns-974.awsdns-57.net. | ||
| imbit-n3xt.com | SOA | No | ns-1847.awsdns-38.co.uk. awsdns-hostmaster.amazon.com. 1 7200 900 1209600 86400 | Start of authority record |
| _gh-imbit-mannheim-o.imbit-n3xt.com | TXT | No | "0ee8238c20" | Domain verification record for Github Pages |
Networking Setup
The AWS networking is handled in the VPC Dashboard. A new VPC, called IMBIT-VPC, was created with a /24 subnet for each application.
Subnets Overview
| Name | Subnet ID | IPv4 CIDR | Availability Zone |
|---|---|---|---|
| Public-EU-CENTRAL-1a | subnet-01a8c817059d12a4d | 10.0.0.0/20 | eu-central-1a |
| Public-EU-CENTRAL-1b | subnet-0717fdb65b0a31b38 | 10.0.16.0/20 | eu-central-1b |
| BrillianCRM | subnet-0439f43bf8fb29801 | 10.0.41.0/24 | eu-central-1b |
| BrillianICM | subnet-050a30c1bfc623361 | 10.0.42.0/24 | eu-central-1b |
| BrillianIDEAS | subnet-0802987cab48623ee | 10.0.43.0/24 | eu-central-1b |
| BrillianQUIZ | subnet-0fdb84aa269bb45b7 | 10.0.44.0/24 | eu-central-1a |
| IMBIT-N3XT | subnet-01dbe3669b188c9de | 10.0.45.0/24 | eu-central-1a |

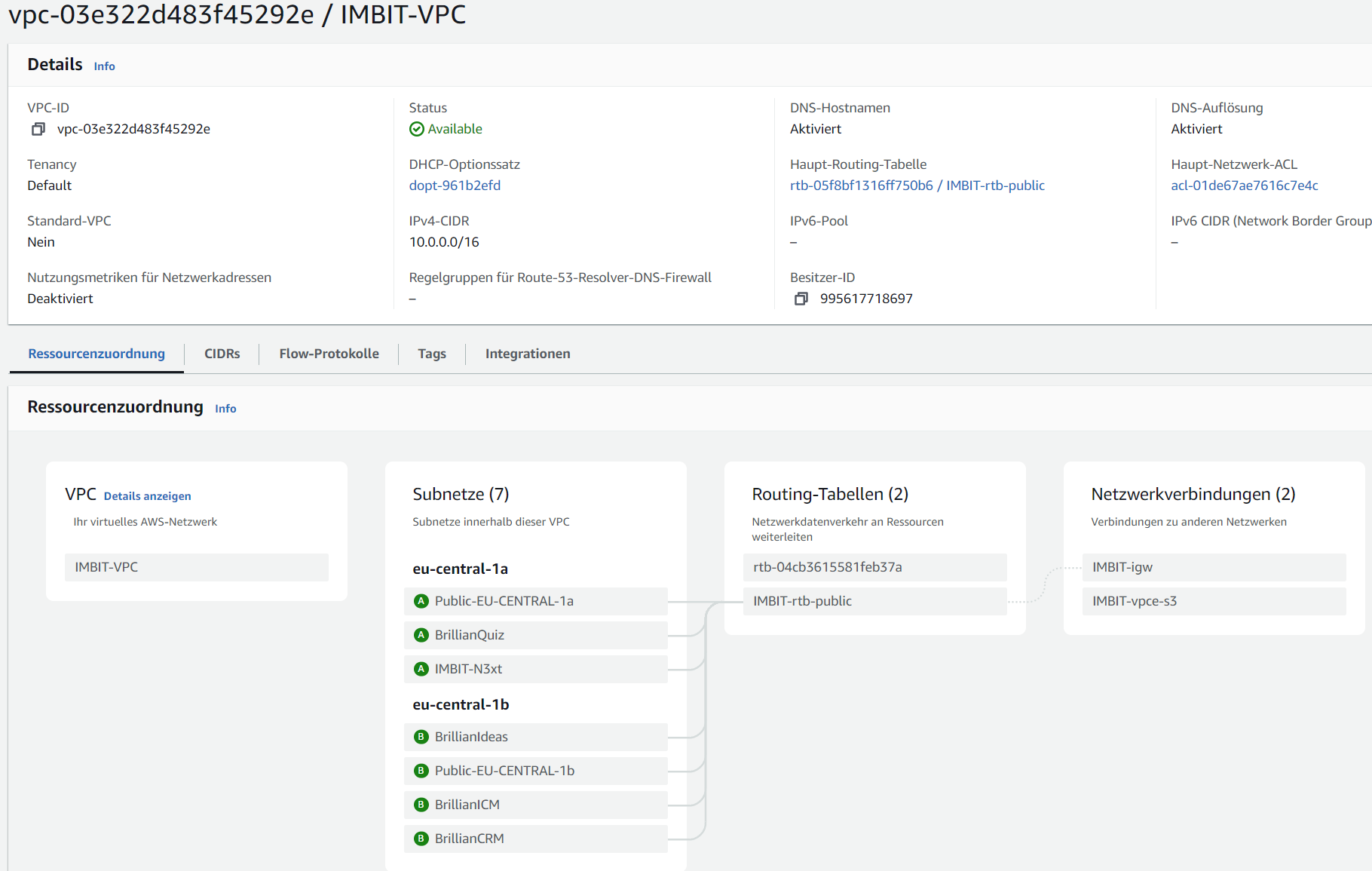

Visual Overview
